Flexible PVC Water Discharge Hose , Sprinkler Irrigation Pipe UV Resistant

Brand Name : ET

Model Number : 1''-8''

Certification : ISO9001:2008;SGS

Place of Origin : Shandong, China (Mainland)

MOQ : 1000m

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 4000tons / per year

Delivery Time : 10-15 work days

Packaging Details : woven plastic cloth wrapped, covered by paper card

name : pvc lay flat hose

inner diameter : 25-408mm

w.p. : 2bar - 10bar

outer tube : high quality pvc

inner tube : pvc

temperature : -5℃~65℃

Contact Now

pvc lay flat pump water discharge hose / sprinkler irrigation pipe with UV-resistant

size	1-16inch
Color	Blue / Orange / Yellow / Red / Green or customized
Length:	10m/30m/50m/100m Or Customized
burst pressure	6bar - 30bar
features	non-toxic, durable, flexible, UV-resistant
reinforcement	high strength polyester yarn

Features

PVC lay flat hose is designed as standard duty hose, medium duty hose and heavy duty hose for water liquid discharge in Agricultural Irrigation, industrial and construction applications, and is economical and rolls up flat for easy and storage, resists kinking and twisting.

structure:

Tube: PVC compound

Cover: PVC compound

Reinforcement: High strength polyester yarn

Specification:

Diameter from 1'' to 16'',25mm-408mm

Working pressure: 2bar 3bar 4bar 5bar 6bar 7bar 8bar 10bar

Burst pressure: 3 times working pressure

production

1. High strength polyester woven jacket as reinforcement made by circular woven machine

2. extrusion through the wave give strong bonding between cover and lining

3. finished product

packing

1. standard packing white color PP bags, one roll one bag

2. customized packing pp bags with carton card

3. large diameter and long length packing easy to roll and up, Iron shelf

Quality control

1. Whole length working pressure test

2. Sample burst pressure test

3. Thickness test

Advantage:

After finish production layflat hose, before deliver to customer, every roll layflat hose we will do working pressure test and cut sample to do burst pressure test. Our factory advantage is that we do not only cut one meter or 2 meters as sample to test working pressure, what we test is the whole length of the hose, it will ensure the whole length layflat hose working pressure reach customer requirement.

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.047	1.20	0.15	5	75	100	300
1-1/4	32	0.047	1.20	0.17	5	75	100	300
1-1/2	38	0.049	1.25	0.19	5	75	100	300
2	51	0.043	1.10	0.22	4	60	100	300
2-1/2	64	0.047	1.20	0.30	4	60	100	300
3	76	0.047	1.20	0.35	4	60	100	300
4	102	0.047	1.20	0.53	4	60	100	300
5	127	0.053	1.35	0.75	4	60	100	300
6	153	0.053	1.35	0.90	4	60	100	300
8	203	0.071	1.80	1.60	3	45	100	300
10	254	0.094	2.40	2.60	3	45	50	150
12	305	0.094	2.40	3.10	2	30	50	150
14	358	0.118	3.00	5.00	2	30	50	150
16	408	0.118	3.00	6.00	2	30	50	150

Medium Duty PVC Layflat Hose:

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.051	1.30	0.16	8	120	100	300
1-1/4	32	0.051	1.30	0.19	7	100	100	300
1-1/2	38	0.051	1.3	0.21	7	100	100	300
2	51	0.053	1.35	0.30	6	90	100	300
2-1/2	64	0.057	1.45	0.40	6	90	100	300
3	76	0.057	1.45	0.50	6	90	100	300
4	102	0.071	1.80	0.80	6	90	100	300
5	127	0.075	1.90	1.08	6	90	100	300
6	153	0.094	2.40	1.60	6	90	100	300
8	203	0.103	2.60	2.20	5	75	50	150

Heavy Duty PVC Layflat Hose:

Inner Diameter		Wall Thickness		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	0.060	1.50	0.19	10	150	100	300
1-1/4	32	0.060	1.50	0.21	10	150	100	300
1-1/2	38	0.071	1.7	0.29	10	150	100	300
2	51	0.061	1.55	0.35	8	120	100	300
2	51	0.069	1.75	0.40	10	150	100	300
2-1/2	64	0.079	2.00	0.60	10	150	100	300
3	76	0.079	2.00	0.66	8	120	100	300
3	76	0.095	2.40	0.80	10	150	100	300
4	102	0.083	2.10	0.92	8	120	100	300
4	102	0.095	2.40	1.00	10	150	100	300
5	127	0.075	1.90	1.08	10	150	100	300
6	153	0.118	3.00	2.00	8	120	100	300
8	203	0.126	3.20	2.80	6	90	50	150

Product Tags:

water pump hose pipe

lay flat irrigation tube

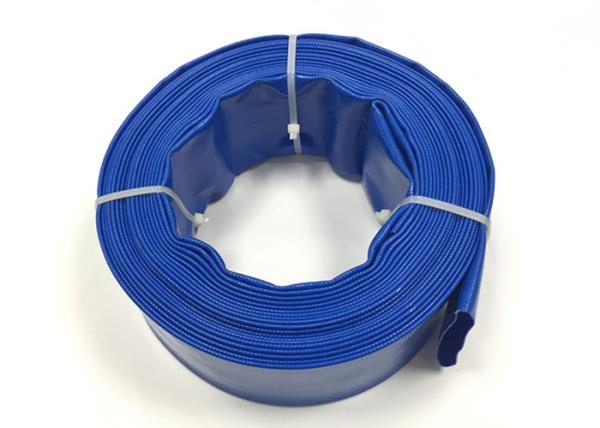

Flexible PVC Water Discharge Hose , Sprinkler Irrigation Pipe UV Resistant Images
