High Intensity PVC Fiber Hose , Steel Wire Composite Hose Pipe Anti Abrasion

Brand Name : ET

Model Number : 1"-4''

Certification : ISO9001:2008,SGS,ROHS

Place of Origin : Shandong, China

MOQ : 1000m

Price : $0.03-$5 / meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6000tons / year

Delivery Time : 10-15 work days

Packaging Details : transparent plastic film wrapped

product name : PVC reinforced hose

standard : ISO; SGS etc.

material : pvc ,steel wire, polyester fiber

inner diameter : 25mm-100mm

outer diameter : 33mm-116mm

thickness : 4mm-8mm

Contact Now

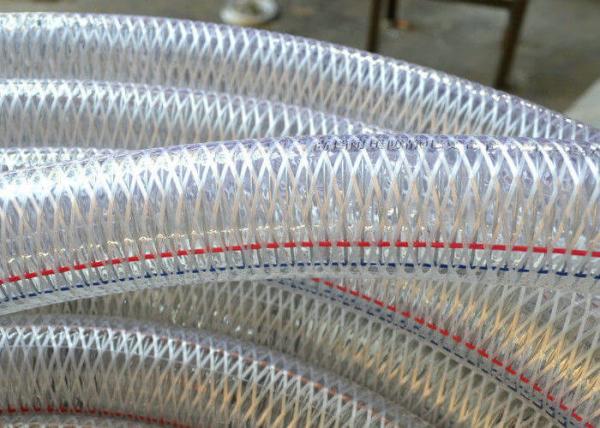

pvc high-intensity polyester fiber and steel wire composite reinforced hose / pipe

Description:

This hose, made with steel wire screwing inlaid in the hose, and high quality fiber reinforcement by advanced technology, can keep its shape and work normally under higher pressure as well as minus pressure conditions, which is much stronger and durable than normal steel wire reinforced hose. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.

specification	1inch-4inch
color	blue, transparent, green etc.
length	20m, 30m, 50m/roll or as consumer's requst
working pressure	4bar to 8bar
burst pressure	12bar to 24bar
application	conveying air, liquid, powder etc.

Construction:

pvc outer layer

pvc inner layer

spiral zinc-plated steel wire

polyester fiber reinforcement.

Application:

The hose is suitable for drawing and conveying liquid, gas and powder under high working pressure in factories, agriculture, engineering, foodstuffs and sanitation lines.

Specification:

Inner Diameter		Outer Diameter		Weight	W.P.(at 23℃)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	1.299	33	0.54	8	120	50	150
1-1/4	32	1.614	41	0.78	8	120	40	120
1-1/2	38	1.889	47	1.05	7	105	40	120
2	50	2.441	61	1.60	7	105	40	120
2-1/2	64	3.149	78	2.80	7	105	30	90
3	75	3.582	90	3.50	6	90	30	90
3-1/2	90	4.251	106	4.50	5	75	20	60
4	100	4.645	116	4.80	4	60	20	60
