20 Bar Oil Delivery Industrial Rubber Hose For Discharge Of Petroleum-Based Products
Oil Discharge Hose, also called rubber fuel oil hose, flexible reinforced oil hose, fuel oil discharge hose is a type of flexible hose for discharge and delivery of oil with aromatic content. Compared with water rubber hose, the oil rubber hose has inserted copper wire for ground connection and eliminating static electricity. The inner and outer rubber material has excellent oil, abrasion and wear resistance performance. Additional, it has up to 50% aromatic content resistant performance for heavy duty applications.
Oil Discharge Hose Construction:
Tube: Black, smooth, Nitrile.
Reinforcement: Multi plies high strength synthetic fabric.
Cover: Black, wrapped surface, weather and ozone resistant, synthetic rubber.
Oil Discharge Hose Application:
Softwall hose Designed for the discharge of petroleum-based products, diesel, gasoline, lubricants, fuel, with aromatic content up to 50%.
Oil Discharge Hose Temperature: -35℃ to 80℃
Oil Discharge Hose Characteristic:
Weather and abrasion resistant cover
Flexible and less distortion
For aromatic content up to 50%
| ID | OD | WP | BP | Weight | Length |
| in | mm | mm | bar | psi | bar | psi | kg/m | m |
| 3/4 | 19 | 30.4 | 20 | 300 | 60 | 900 | 0.64 | 60 |
| 1 | 25 | 36.4 | 20 | 300 | 60 | 900 | 0.8 | 60 |
| 1-1/4 | 32 | 45 | 20 | 300 | 60 | 900 | 1.06 | 60 |
| 1-1/2 | 38 | 51.8 | 20 | 300 | 60 | 900 | 1.41 | 60 |
| 1-3/4 | 45 | 58.8 | 20 | 300 | 60 | 900 | 1.63 | 60 |
| 2 | 51 | 64.8 | 20 | 300 | 60 | 900 | 1.82 | 60 |
| 2-1/2 | 64 | 78.6 | 20 | 300 | 60 | 900 | 2.3 | 60 |
| 3 | 76 | 90.6 | 20 | 300 | 60 | 900 | 2.68 | 60 |
| 3-1/2 | 89 | 106.4 | 20 | 300 | 60 | 900 | 3.72 | 60 |
| 4 | 102 | 119.4 | 20 | 300 | 60 | 900 | 4.21 | 60 |
| 5 | 127 | 145.6 | 20 | 300 | 60 | 900 | 5.67 | 30 |
| 6 | 152 | 170.6 | 20 | 300 | 60 | 900 | 6.71 | 30 |
| 8 | 203 | 225.8 | 20 | 300 | 60 | 900 | 10.91 | 10 |
| 10 | 254 | 278.4 | 20 | 300 | 60 | 900 | 14.62 | 10 |
| 12 | 304 | 333.2 | 20 | 300 | 60 | 900 | 20.91 | 10 |
|
|

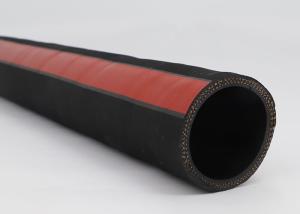

20 Bar Oil Delivery Industrial Rubber Hose For Discharge Of Petroleum-Based Products Images
|
